Using Images

The Image control is used to insert an image whose location is specified in the Source attribute using an URI:

<Image xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" Source="Images/melon1.png"/>

As the rest of controls, an Image is measured and arranged, so its size depends not only on the original image dimensions. Layout properties determine the space available for the Image, and the Stretch property defines how the image fills that available space:

  • None: dimensions are preserved.
  • Fill: the image fills the available space, dimensions are modified.
  • Uniform: the image fills as much as possible the available space preserving the aspect ratio.
  • UniformToFill: the image totally fills the available space preserving the aspect ratio and clipping the image if it is too large.

The following sample shows all the possible strecth modes of an Image control:

<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="White" TextElement.Foreground="Black">
    <StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">
        <TextBlock Text="Original Image" TextAlignment="Center"/>
        <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" HorizontalAlignment="Center"
         VerticalAlignment="Center">
            <Image Source="Images/melon1.png" Stretch="None"/>
        </Border>
        <Grid Margin="0,10,0,0">
            <Grid.ColumnDefinitions>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
            </Grid.ColumnDefinitions>
            <Grid.RowDefinitions>
                <RowDefinition/>
                <RowDefinition/>
            </Grid.RowDefinitions>
            <TextBlock Text="None" TextAlignment="Center" Grid.Column="0"/>
            <TextBlock Text="Fill" TextAlignment="Center" Grid.Column="1"/>
            <TextBlock Text="Uniform" TextAlignment="Center" Grid.Column="2"/>
            <TextBlock Text="UniformToFill" TextAlignment="Center" Grid.Column="3"/>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="120" Height="200" Grid.Column="0"
             Grid.Row="1">
                <Image Source="Images/melon1.png" Stretch="None"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="120" Height="200" Grid.Column="1"
             Grid.Row="1">
                <Image Source="Images/melon1.png" Stretch="Fill"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="120" Height="200" Grid.Column="2"
             Grid.Row="1">
                <Image Source="Images/melon1.png" Stretch="Uniform"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="120" Height="200" Grid.Column="3"
             Grid.Row="1">
                <Image Source="Images/melon1.png" Stretch="UniformToFill"/>
            </Border>
        </Grid>
    </StackPanel>
</Grid>

ImageBrush

ImageBrush uses an image to paint an area of a graphics object. It is normally applied to the Background property of a Panel or Border or to Fill a Shape. The ImageSource property is meant to hold the bitmap content.

<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
    <Grid.Background>
        <ImageBrush ImageSource="Images/melon1.png" Stretch="Uniform" TileMode="Tile" Viewport="0,0,0.25,0.25" />
    </Grid.Background>
</Grid>

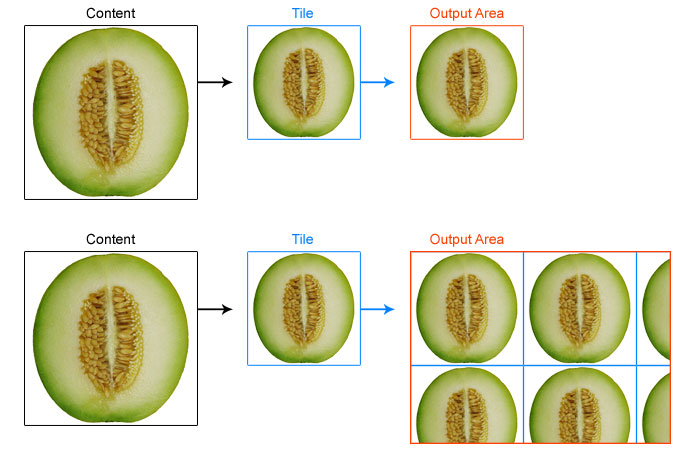

ImageBrush derives from the TileBrush class. When you paint an area by using a TileBrush you control three elements: content, tiles and the output area.


TileBrush defines some interesting properties that configure how tiles are placed in the output area.

Stretch

This property specifies how the content stretches to fit its tiles. In the following example all stretch modes are applied to Rectangle elements:

<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="White" TextElement.Foreground="Black">
    <StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">
        <TextBlock Text="Original Image" TextAlignment="Center"/>
        <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" HorizontalAlignment="Center"
         VerticalAlignment="Center">
            <Rectangle Width="300" Height="300">
                <Rectangle.Fill>
                    <ImageBrush ImageSource="Images/melon1.png" Stretch="None"/>
                </Rectangle.Fill>
            </Rectangle>
        </Border>
        <Grid Margin="0,10,0,0">
            <Grid.ColumnDefinitions>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
            </Grid.ColumnDefinitions>
            <Grid.RowDefinitions>
                <RowDefinition/>
                <RowDefinition/>
            </Grid.RowDefinitions>
            <TextBlock Text="None" TextAlignment="Center" Grid.Column="0"/>
            <TextBlock Text="Fill" TextAlignment="Center" Grid.Column="1"/>
            <TextBlock Text="Uniform" TextAlignment="Center" Grid.Column="2"/>
            <TextBlock Text="UniformToFill" TextAlignment="Center" Grid.Column="3"/>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="120" Height="200" Grid.Column="0"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon1.png" Stretch="None"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="120" Height="200" Grid.Column="1"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon1.png" Stretch="Fill"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="120" Height="200" Grid.Column="2"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon1.png" Stretch="Uniform"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="120" Height="200" Grid.Column="3"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon1.png" Stretch="UniformToFill"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
        </Grid>
    </StackPanel>
</Grid>

NOTE

As you can see in the previous screenshots when tiles don't exactly fit the output area they are centered. This is the default behavior, although you can use the Viewbox and Viewport properties (explained below) to change it.

Viewbox

This property specifies the subimage of the content that defines a tile. The ViewboxUnits property is used to indicate whether the Viewbox value is interpreted as a relative, the default, or absolute value.

The following example shows the effect of different Stretch modes on a TileBrush that has a Viewbox that is smaller than the output area. Notice that TileBrush contents are never clipped to the Viewbox (parts of the image that are outside the Viewbox are tinted to make it clear).

<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="White" TextElement.Foreground="Black">
    <StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">
        <Grid>
            <Grid.ColumnDefinitions>
                <ColumnDefinition/>
                <ColumnDefinition/>
            </Grid.ColumnDefinitions>
            <Grid.RowDefinitions>
                <RowDefinition/>
                <RowDefinition/>
            </Grid.RowDefinitions>
            <TextBlock Text="Original Image" TextAlignment="Center"/>
            <TextBlock Text="Viewbox=&quot;0.5,0.25,0.25,0.5&quot;" TextAlignment="Center" Grid.Column="1"/>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" HorizontalAlignment="Center"
             VerticalAlignment="Center" Grid.Row="1">
                <Rectangle Width="300" Height="300">
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon2.png" Stretch="None"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" HorizontalAlignment="Center"
             VerticalAlignment="Center" Grid.Column="1" Grid.Row="1">
                <Rectangle Width="300" Height="300">
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon2-viewbox.png" Stretch="None"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
        </Grid>
        <Grid Margin="0,10,0,0">
            <Grid.ColumnDefinitions>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
            </Grid.ColumnDefinitions>
            <Grid.RowDefinitions>
                <RowDefinition/>
                <RowDefinition/>
            </Grid.RowDefinitions>
            <TextBlock Text="None" TextAlignment="Center" Grid.Column="0"/>
            <TextBlock Text="Fill" TextAlignment="Center" Grid.Column="1"/>
            <TextBlock Text="Uniform" TextAlignment="Center" Grid.Column="2"/>
            <TextBlock Text="UniformToFill" TextAlignment="Center" Grid.Column="3"/>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="150" Height="150" Grid.Column="0"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon2-viewbox.png" Stretch="None"
                         Viewbox="0.5,0.25,0.25,0.5"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="150" Height="150" Grid.Column="1"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon2-viewbox.png" Stretch="Fill"
                         Viewbox="0.5,0.25,0.25,0.5"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="150" Height="150" Grid.Column="2"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon2-viewbox.png" Stretch="Uniform"
                         Viewbox="0.5,0.25,0.25,0.5"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5,0" Width="150" Height="150" Grid.Column="3"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/melon2-viewbox.png" Stretch="UniformToFill"
                         Viewbox="0.5,0.25,0.25,0.5"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
        </Grid>
    </StackPanel>
</Grid>

Viewport

This property specifies the position and dimensions of the tile in the output area. By default, a TileBrush has a single tile that fills the whole output area.

The ViewportUnits property is used to specify whether the Viewport uses absolute or relative coordinates. When relative, the default mode, the coordinates are relative to the size of the output area. The point (0,0) represents the upper-left corner of the output area, and (1,1) represents the lower-right corner of the output area.

TileMode

The TileMode property allows you to specify how the content of a TileBrush is repeated to fill the output area. To create a pattern the property TileMode is set to Tile, FlipX, FlipY or FlipXY and the Viewport of the TileBrush is set so that it is smaller than the area that you are painting; otherwise, only a single tile is produced, regardless which TileMode setting you use.

The following example shows the different tile modes:

<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="White" TextElement.Foreground="Black">
    <StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">
        <Grid>
            <Grid.RowDefinitions>
                <RowDefinition/>
                <RowDefinition/>
            </Grid.RowDefinitions>
            <TextBlock Text="Original Image" TextAlignment="Center"/>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" HorizontalAlignment="Center"
             VerticalAlignment="Center" Grid.Row="1">
                <Rectangle Width="100" Height="100">
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="None"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
        </Grid>
        <Grid Margin="0,10,0,0">
            <Grid.ColumnDefinitions>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
                <ColumnDefinition/>
            </Grid.ColumnDefinitions>
            <Grid.RowDefinitions>
                <RowDefinition/>
                <RowDefinition/>
                <RowDefinition/>
            </Grid.RowDefinitions>
            <TextBlock Text="None" TextAlignment="Center" Grid.Column="0"/>
            <TextBlock Text="Tile" TextAlignment="Center" Grid.Column="1"/>
            <TextBlock Text="FlipX" TextAlignment="Center" Grid.Column="2"/>
            <TextBlock Text="FlipY" TextAlignment="Center" Grid.Column="3"/>
            <TextBlock Text="FlipXY" TextAlignment="Center" Grid.Column="4"/>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="0"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="None" ViewportUnits="Absolute"
                         Viewport="0,0,25,25" TileMode="None"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="1"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="None" ViewportUnits="Absolute"
                         Viewport="0,0,25,25" TileMode="Tile"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="2"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="None" ViewportUnits="Absolute"
                         Viewport="0,0,25,25" TileMode="FlipX"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="3"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="None" ViewportUnits="Absolute"
                         Viewport="0,0,25,25" TileMode="FlipY"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="4"
             Grid.Row="1">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="None" ViewportUnits="Absolute"
                         Viewport="0,0,25,25" TileMode="FlipXY"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="0"
             Grid.Row="2">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="Fill"
                         ViewportUnits="RelativeToBoundingBox" Viewport="0,0,0.1,0.2" TileMode="None"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="1"
             Grid.Row="2">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="Fill"
                         ViewportUnits="RelativeToBoundingBox" Viewport="0,0,0.1,0.2" TileMode="Tile"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="2"
             Grid.Row="2">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="Fill"
                         ViewportUnits="RelativeToBoundingBox" Viewport="0,0,0.1,0.2" TileMode="FlipX"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="3"
             Grid.Row="2">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="Fill"
                         ViewportUnits="RelativeToBoundingBox" Viewport="0,0,0.1,0.2" TileMode="FlipY"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" Margin="5" Width="100" Height="100" Grid.Column="4"
             Grid.Row="2">
                <Rectangle>
                    <Rectangle.Fill>
                        <ImageBrush ImageSource="Images/tile.png" Stretch="Fill"
                         ViewportUnits="RelativeToBoundingBox" Viewport="0,0,0.1,0.2" TileMode="FlipXY"/>
                    </Rectangle.Fill>
                </Rectangle>
            </Border>
        </Grid>
    </StackPanel>
</Grid>

Image resize quality

By default noesisGUI scales images using a high-quality re-sampling algorithm implemented in the GPU. Although most of the time the quality is fine this algorithm tends to blur the results to reduce aliasing. The default algorithm can be changed by using the BitmapScalingMode attached property on any UIElement descendant.

<StackPanel
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" UseLayoutRounding="True" Orientation="Horizontal">

  <Grid RenderOptions.BitmapScalingMode="Linear" Width="500">
    <Grid.Background>
        <ImageBrush ImageSource="Images/bg.jpg" Stretch="UniformToFill" AlignmentX="Center" AlignmentY="Center"/>
    </Grid.Background>
    <TextBlock Text="Linear" Foreground="White" HorizontalAlignment="Left" VerticalAlignment="Top"  Margin="10" />
  </Grid>

   <Grid RenderOptions.BitmapScalingMode="HighQuality" Width="500">
    <Grid.Background>
        <ImageBrush ImageSource="Images/bg.jpg" Stretch="UniformToFill" AlignmentX="Center" AlignmentY="Center"/>
    </Grid.Background>
    <TextBlock Text="HighQuality" Foreground="White" HorizontalAlignment="Left" VerticalAlignment="Top"  Margin="10" />
  </Grid>
</StackPanel>

Texture Atlas

Texture atlas is a technique to group smaller images into a larger image to improve performance. It is a method traditionally used to animate sprites on screen.

Although you can use the tool you wish, we provide a plugin for TexturePacker that directly generates a valid XAML that can be used as an atlas in NoesisGui. The plugin can be found in our public github. The following is an atlas generated with that tool:

<!-- Created using Noesis XAML exporter for TexturePacker (http://www.texturepacker.com) -->
<ResourceDictionary
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">

    <ImageBrush x:Key="aladin01" ImageSource="aladin-atlas.png" Viewbox="145,58,33,54" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin02" ImageSource="aladin-atlas.png" Viewbox="180,58,30,54" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin03" ImageSource="aladin-atlas.png" Viewbox="73,61,27,57" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin04" ImageSource="aladin-atlas.png" Viewbox="39,2,33,57" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin05" ImageSource="aladin-atlas.png" Viewbox="112,2,38,54" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin06" ImageSource="aladin-atlas.png" Viewbox="74,2,36,56" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin07" ImageSource="aladin-atlas.png" Viewbox="152,2,31,54" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin08" ImageSource="aladin-atlas.png" Viewbox="185,2,27,54" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin09" ImageSource="aladin-atlas.png" Viewbox="41,61,30,57" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin10" ImageSource="aladin-atlas.png" Viewbox="2,2,35,58" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin11" ImageSource="aladin-atlas.png" Viewbox="102,60,41,55" ViewboxUnits="Absolute"
      Stretch="Fill"/>
    <ImageBrush x:Key="aladin12" ImageSource="aladin-atlas.png" Viewbox="2,62,37,57" ViewboxUnits="Absolute"
      Stretch="Fill"/>

</ResourceDictionary>

The following example shows how to reference that dictionary to use sprites in your XAML files:

<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  UseLayoutRounding="True" Background="White" TextElement.Foreground="Black">

    <Grid.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="Images/Aladin/aladin.xaml"/>
            </ResourceDictionary.MergedDictionaries>

            <Storyboard x:Key="AladinRun" RepeatBehavior="Forever" Duration="0:0:4.2">
                <DoubleAnimation Storyboard.TargetName="aladin" Storyboard.TargetProperty="RenderTransform.X"
                  From="-30" To="500" Duration="0:0:4.2"/>
                <Storyboard Duration="0:0:0.6" RepeatBehavior="Forever">
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_01"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.05">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_02"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.05">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.10">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_03"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.10">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.15">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_04"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.15">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.20">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_05"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.20">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.25">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_06"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.25">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.30">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_07"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.30">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.35">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_08"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.35">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.40">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_09"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.40">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.45">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_10"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.00">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.45">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.50">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_11"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.0">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.50">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.55">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                    <ObjectAnimationUsingKeyFrames Storyboard.TargetName="aladin_sprite_12"
                      Storyboard.TargetProperty="Visibility">
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.0">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.55">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Visible</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                        <DiscreteObjectKeyFrame KeyTime="0:0:0.60">
                            <DiscreteObjectKeyFrame.Value>
                                <Visibility>Hidden</Visibility>
                            </DiscreteObjectKeyFrame.Value>
                        </DiscreteObjectKeyFrame>
                    </ObjectAnimationUsingKeyFrames>
                </Storyboard>
            </Storyboard>
        </ResourceDictionary>
    </Grid.Resources>

    <Grid.Triggers>
        <EventTrigger RoutedEvent="FrameworkElement.Loaded">
            <BeginStoryboard Storyboard="{StaticResource AladinRun}"/>
        </EventTrigger>
    </Grid.Triggers>

    <StackPanel HorizontalAlignment="Center" VerticalAlignment="Center">

        <TextBlock Text="Atlas Image" TextAlignment="Center"/>
        <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
            <Image Source="Images/Aladin/aladin-atlas.png" Stretch="None"/>
        </Border>

        <TextBlock Text="Image brushes for each sprite" TextAlignment="Center" Margin="0,10,0,0"/>
        <StackPanel Orientation="Horizontal" HorizontalAlignment="Center">
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin01}" Width="33" Height="54"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin02}" Width="30" Height="54"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin03}" Width="27" Height="57"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin04}" Width="33" Height="57"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin05}" Width="38" Height="54"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin06}" Width="36" Height="56"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin07}" Width="31" Height="54"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin08}" Width="27" Height="54"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin09}" Width="30" Height="57"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin10}" Width="35" Height="58"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin11}" Width="41" Height="55"/>
            </Border>
            <Border BorderBrush="Black" BorderThickness="1" HorizontalAlignment="Center" Margin="5">
                <Rectangle Fill="{StaticResource aladin12}" Width="37" Height="57"/>
            </Border>
        </StackPanel>

        <TextBlock Text="Animated sprites" TextAlignment="Center" Margin="0,10,0,0"/>
        <Border BorderBrush="Black" BorderThickness="1" Width="500" ClipToBounds="True">
            <Border.Background>
                <LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
                    <GradientStop Offset="0" Color="Cyan"/>
                    <GradientStop Offset="0.71" Color="White"/>
                    <GradientStop Offset="0.72" Color="Green"/>
                    <GradientStop Offset="1" Color="LightGreen"/>
                </LinearGradientBrush>
            </Border.Background>
            <Grid x:Name="aladin" HorizontalAlignment="Left" VerticalAlignment="Bottom" Margin="0,50,0,10">
                <Grid.RenderTransform>
                    <TranslateTransform/>
                </Grid.RenderTransform>
                    <Rectangle x:Name="aladin_sprite_01" Fill="{StaticResource aladin01}" Width="33" Height="54"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Visible"/>
                    <Rectangle x:Name="aladin_sprite_02" Fill="{StaticResource aladin02}" Width="30" Height="54"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_03" Fill="{StaticResource aladin03}" Width="27" Height="57"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_04" Fill="{StaticResource aladin04}" Width="33" Height="57"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_05" Fill="{StaticResource aladin05}" Width="38" Height="54"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_06" Fill="{StaticResource aladin06}" Width="36" Height="56"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_07" Fill="{StaticResource aladin07}" Width="31" Height="54"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_08" Fill="{StaticResource aladin08}" Width="27" Height="54"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_09" Fill="{StaticResource aladin09}" Width="30" Height="57"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_10" Fill="{StaticResource aladin10}" Width="35" Height="58"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_11" Fill="{StaticResource aladin11}" Width="41" Height="55"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
                    <Rectangle x:Name="aladin_sprite_12" Fill="{StaticResource aladin12}" Width="37" Height="57"
                        HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Hidden"/>
            </Grid>
        </Border>

    </StackPanel>
</Grid>

9-Slice Scaling

9-slice scaling is a nifty way that you can use to scale symbols without distorting them. This is especially useful when creating signs, speech bubbles, etc. The symbol is divided into 9 sections, and only the middle sections are stretched. The corners transform with the symbol but they aren't distorted.


This technique, very common for flash designers, can be easily emulated by using a grid.

<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">

    <Grid.Background>
        <RadialGradientBrush Center="0.6,0.7" GradientOrigin="0.6,0.7" RadiusX="0.6" RadiusY="0.7">
            <GradientStop Offset="0" Color="YellowGreen"/>
            <GradientStop Offset="1" Color="OliveDrab"/>
        </RadialGradientBrush>
    </Grid.Background>

    <Grid.Resources>
      <ImageBrush x:Key="WoodSignTL" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="0,0,50,60"/>
      <ImageBrush x:Key="WoodSignT" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="50,0,200,60"/>
      <ImageBrush x:Key="WoodSignTR" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="250,0,50,60"/>

      <ImageBrush x:Key="WoodSignML" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="0,60,50,80"/>
      <ImageBrush x:Key="WoodSignM" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="50,60,200,80"/>
      <ImageBrush x:Key="WoodSignMR" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="250,60,50,80"/>

      <ImageBrush x:Key="WoodSignBL" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="0,140,50,60"/>
      <ImageBrush x:Key="WoodSignB" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="50,140,200,60"/>
      <ImageBrush x:Key="WoodSignBR" ImageSource="Images/9slice.png" ViewboxUnits="Absolute" Viewbox="250,140,50,60"/>
    </Grid.Resources>

    <StackPanel Orientation="Horizontal" HorizontalAlignment="Center" VerticalAlignment="Center">

        <Grid Width="200" Height="150">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="50"/>
                <ColumnDefinition Width="*"/>
                <ColumnDefinition Width="50"/>
            </Grid.ColumnDefinitions>
            <Grid.RowDefinitions>
                <RowDefinition Height="60"/>
                <RowDefinition Height="*"/>
                <RowDefinition Height="60"/>
            </Grid.RowDefinitions>

            <Rectangle Grid.Column="0" Grid.Row="0" Fill="{StaticResource WoodSignTL}"/>
            <Rectangle Grid.Column="1" Grid.Row="0" Fill="{StaticResource WoodSignT}"/>
            <Rectangle Grid.Column="2" Grid.Row="0" Fill="{StaticResource WoodSignTR}"/>

            <Rectangle Grid.Column="0" Grid.Row="1" Fill="{StaticResource WoodSignML}"/>
            <Rectangle Grid.Column="1" Grid.Row="1" Fill="{StaticResource WoodSignM}"/>
            <Rectangle Grid.Column="2" Grid.Row="1" Fill="{StaticResource WoodSignMR}"/>

            <Rectangle Grid.Column="0" Grid.Row="2" Fill="{StaticResource WoodSignBL}"/>
            <Rectangle Grid.Column="1" Grid.Row="2" Fill="{StaticResource WoodSignB}"/>
            <Rectangle Grid.Column="2" Grid.Row="2" Fill="{StaticResource WoodSignBR}"/>

            <TextBlock Grid.ColumnSpan="3" Grid.RowSpan="3" HorizontalAlignment="Center" VerticalAlignment="Center"
                FontFamily="#Another" FontSize="40" Foreground="#402000" Text="Welcome!"/>
        </Grid>

    </StackPanel>

</Grid>

Generating Images at Runtime

Sometimes you need to generate images that are not available at build time. For example, when you are downloading an image from Internet or when your application supports user generated images. For these cases, the TextureSource class is provided. A TextureSource is initialized passing a native texture handle. Once initialized it must be set to the corresponding Image or ImageBrush.

Note

NoesisGUI expects texture with alpha in premultiplied format. Take this into account when you are passing texture handles.

http://www.noesisengine.com/forums/viewtopic.php?f=3&t=194

Native SDK (C++)

void SetTexture(ID3D11Texture2D* texture, FrameworkElement* root)
{
    Gui::Image* image = root->FindName<Image>("image");
    Ptr<Gui::TextureSource> source = *new Gui::TextureSource(texture, 512, 512, 1, false);
    image->SetSource(source.GetPtr());
}

Unity (C#)

NoesisGUI directly understands the class Texture2D provided by Unity.

Grid grid = (Grid)GetComponent<NoesisView>().Content;

Texture2D texture = (Texture2D)Resources.Load("Noesis");
TextureSource source = new TextureSource(texture);

Image image = (Image)grid.FindName("image");
image.SetSource(source);

Note

Although in this sample we use a Texture2D, RenderTexture and MovieTexture are also supported. In fact, all classes deriving from Texture are supported.

© 2017 Noesis Technologies
